Cikkszám
11131829
Állapot
Új
Márka
MAHLE - Letrika - Iskra
MAHLE - Letrika - Iskra
12V 3.4kW z9 (IS1249, MS429)
MAHLE Webkatalógus
Letrika Webkatalógus
MAHLE Alkatrészlista
Letrika Alkatrészlista
Használati útmutató

Kérdése merült fel?

E-mail
trade@tradeservice.hu
Telefon
+36 79 / 426-678
Ez a termék jelenleg nincs raktáron.
A termék áráról és elérhetőségéről kérjük érdeklődjön munkatársainknál!
Nincs raktáron i A termék áráról és elérhetőségéről kérjük érdeklődjön munkatársainknál!

Ingyenes szállítási lehetőség
Magyarországra 50.000 Ft felett

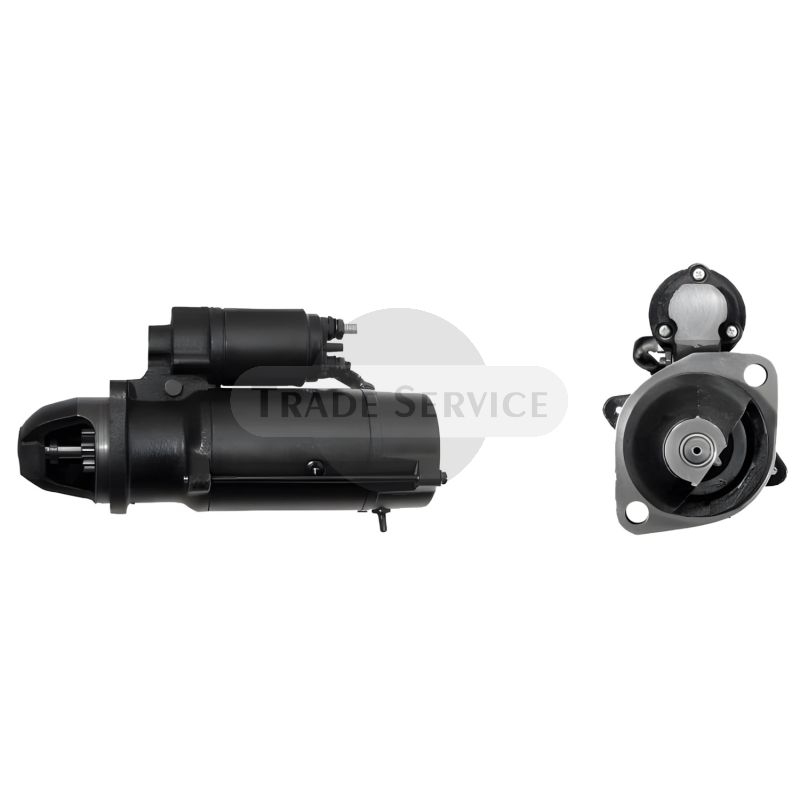

11.131.829 AZF4220 MAHLE (Letrika, Iskra) önindító MS429

11.131.829 AZF4220 MAHLE (Letrika, Iskra) önindító MS429
Helyettesítő termékek Referenciaszámok Kompatibilitás További adatok Alkatrészek

Helyettesítő termékek

Az alábbi termékek is érdekelhetik:
  1. 11.130.898 AZJ3320 MAHLE (Letrika, Iskra) önindító MS354
    11.130.898 AZJ3320 MAHLE (Letrika, Iskra) önindító MS354
    12V 3.0kW z9 (IS0254, MS354)
  2. 11.132.434 AZE4295 MAHLE (Letrika, Iskra) önindító MS738
    11.132.434 AZE4295 MAHLE (Letrika, Iskra) önindító MS738
    190 313 Ft 149 853 Ft
    12V 3.2kW z10 (IS1450, MS738)

Referenciaszámok

BOSCH0001230012, 0001262029, 0001262030, 0986024080
CASE1530289C1
DELCO REMYDRS3326
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)296192300
LESTER19666
LUCASLRS01053
MAHLE (Letrika, Iskra)IS0254, IS1249, IS1450, MS429, 11130254, 11130898, 11131829, 11132306, 11132434, AZE4270, AZE4295, AZF4220
SAME (DEUTZ- FAHR GROUP)296192300, 296193900, 296195600, 299392950, 296195650
STEYR61100090002

Kompatibilitás

GyártóModellTípusMotorTeljesítményÉvjárat
AGCOGT65 65ASDF 1000.4W5; 4-cyl; 46kW4.02004.01-
AGCOGT75 75ASDF 1000.4WT4; 4-cyl; 54kW4.02004.01-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.)AGROCLIMBER410SDF1000.4; 75kW; Tier 34.02012.01-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.)AGROCLIMBERF 400SDF1000.4; 63kW; Tier 34.02012.01-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.)AGROCLIMBERF 410SDF1000.4; 70kW; Tier 34.02012.01-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.)AGROLUX410SAME 1000.4 WTI; 75HP4.02012.01-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.)AGROPLUS405 F EcolineSDF1000.4 WTI 80HP4.02012.01-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.)AGROPLUS410; 410 F Ecoline; /S/VSDF1000.4 WTI 85HP4.02009.01-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.)AGROPLUS420; 420 F Ecoline; /S/VSDF1000.4 WTI 96HP4.02009.01-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.)AGROPLUS430 F/S/VSDF1000.4 WTI 106HP4.02009.01-
HUERLIMANN6115-XBElite DT1000.6W6.01996.01-2000.12
HUERLIMANN6135-XBElite /DT/ REV1000.6WT6.01996.01-2000.12
HUERLIMANNH 478Prestige1000.4W4.01989.01-1998.12
HUERLIMANNSX12001000.6WT3V6.01998.01-2004.12
HUERLIMANNSX13501000.6WT3V6.01998.01-2004.12
HUERLIMANNSX15001000.6WT3V6.01998.01-2004.12
HUERLIMANNSX16001000.6WTI3V6.02000.01-2004.12
HUERLIMANNSX18001000.6WTI3V6.02000.01-2004.12
HUERLIMANNSX20001000.6WTI3V6.02000.01-2004.12
HUERLIMANNXA 657--
HUERLIMANNXA 6581000.4WT44.02000.01-2004.12
HUERLIMANNXN 7081000.4W-
HUERLIMANNXN 7091000.4WT-
HUERLIMANNXT 908DT1000.4W4.01995.01-2005.01
HUERLIMANNXT 909DT1000.4WT4.01995.01-2004.12
HUERLIMANNXT 910.4DT1000.4WT4.01995.01-2004.12
HUERLIMANNXT 910.6DT1000.6W6.01995.01-2004.12
HUERLIMANNXT 9111000.6WT6.02000.01-2003.12
HUERLIMANNXT 9131000.6WT6.02000.01-2003.12
HUERLIMANNXT1051000.6W; 150HP6.02004.01-2009.12
HUERLIMANNXT1101000.4WTI 109HP4.02004.01-2009.12
HUERLIMANNXT851000.4WT; 85HP4.02004.01-2009.12
HUERLIMANNXT951000.4WT; 91HP4.02004.01-2009.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)1000.4W4.01987.01-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)1000.4WT4.01987.01-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)1000.6W6.01990.12-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)1000.6WT6.01990.12-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)1000.6WTI6.01990.09-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)1000.6WTIR6.01992.02-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)115Formula1000.6W; 150HP6.01989.12-2001.01
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)135Formula DT/DT REV1000.6WT; 132HP6.01998.01-2001.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)165Racing DT1000.6WTI; 163HP6.01991.01-2001.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)165Racing1000.6WTI; 163HP6.01991.05-2001.01
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)190Racing /DT1000.6WTIR; 189HP6.01992.01-2001.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)674-70Gran Prix1000.4W4.01989.01-1998.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)674-70Sprint1000.4W4.01995.01-2000.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)AGILE660/770/880/990/775--
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CHAMPION1201000.6.. 120HP6.01998.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CHAMPION1351000.6.. 135HP6.01998.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CHAMPION1501000.6.. 150HP6.01998.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CHAMPION1601000.6.. 160HP6.02000.01-2013.05
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CHAMPION1801000.6.. 180HP6.02000.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CHAMPION2001000.6.. 200HP6.02000.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CRAWLERSC. 110 SIX1000.4.. 102HP Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CRAWLERSCF 100 L/N1000.4.. 99HP4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CRAWLERSCF 1001000.4.. 95HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CRAWLERSCF 78 L/N/ST1000.4.. 78HP4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CRAWLERSCF 88 L/N/ST1000.4.. 88HP-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CRAWLERSCF 90 L/N/ST1000.4.. 90HP-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CRAWLERSCF 901000.4.. 85HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CRAWLERSCF 98 L/N/ST1000.4.. 98HP-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)CRONO801000.4; 75HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)GRAND PRIX75/95--
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)GRAND PRIX874-90 DT REV1000.4WT; 90HP4.01986.01-1990.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)GRAND PRIX874-901000.4WT4.01989.01-1998.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)GRIMPER555/560/570--
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)N CROSS674-75N/774-85N/874-95N--
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)PLUS F55F/70F/75F/90F/100F--
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)PREMIUM1050 DT1000.4WT; 103HP4.01995.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)PREMIUM1060 DT1000.4WT; 105HP4.01995.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)PREMIUM11001000.6.. 110HP6.02000.01-2003.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)PREMIUM13001000.6.. 130HP6.02000.01-2003.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)PREMIUM16001000.6.. 160HP6.02000.01-2003.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)PREMIUM18001000.6.. 180HP6.02000.01-2003.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R1106/1306/1506916.6W-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R2.1001000.4WT; 95HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R2.761000.4; 76HP4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R2.861000.4; 86HP4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R2.90 TARGET1000.4W; 85HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R2.901000.4W; 85HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R3.1051000.4; 102HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R3.75SAME.. 75HP-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R3.851000.4; 85HP4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R3.901000.4; 88HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R3.951000.4; 95HP4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R3.T TARGET1051000.4; 102HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R3.T TARGET901000.4; 88HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R4.1051000.6W; 100HP6.02004.01-2009.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R4.1101000.4WTI 109HP4.02004.01-2009.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R4.851000.4WT; 85HP4.02004.01-2009.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R4.951000.4WT; 91HP4.02004.01-2009.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R5.1151000.6WT; 115HP6.02003.01-2007.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R5.1301000.6WT; 128HP6.02003.01-2007.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R5.140 EVO1000.6WTI; 140HP6.02010.01-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)R5.160 EVO1000.6WTI; 163HP6.02010.01-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RF. TARGET1001000.4.. 96HP Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RF. TARGET80.41000.4.. 80HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RF. TARGET901000.4.. 85HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RF.1001000.4.. 96HP Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RF.1101000.4.. 106HP Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RS.1001000.4.. 96HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RS.1101000.4.. 106HP Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RS.901000.4.. 85HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RV.1001000.4.. 96HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RV.1101000.4..106HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)RV.901000.4.. 85HP; Tier III4.0-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)SPRINT674-701000.4.. 70HP4.01995.01-2000.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)SPRINT674-751000.4.. 72HP4.02000.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)SPRINT684-851000.4.. 83HP4.02000.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)TRACTION2401000.6.. 244HP6.01993.01-1994.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)TRACTION2651000.6.. 263HP6.01999.01-2001.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)TRIUMPH80/90/100--
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)VICTORY230 Plus1000.6.. 230HP6.02004.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)VICTORY2301000.6.. 230HP6.01999.01-2001.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)VICTORY260 Plus1000.6.. 260HP6.02001.01-2004.12
LAMBORGHINI(SAME DEUTZ-FAHR GROUP)VICTORY2601000.6.. 260HP6.01999.01-2001.12
SAME (DEUTZ- FAHR GROUP)ARGON 380SDF1000.4; 55kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)DORADO 3100SDF1000.4; 70kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)DORADO 390 ClassicSDF1000.4; 63kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)DORADO 390SDF1000.4; 63kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)DORADO75--
SAME (DEUTZ- FAHR GROUP)DORADO76/861000.4 W/WT4.02005.01-2009.12
SAME (DEUTZ- FAHR GROUP)DORADO85--
SAME (DEUTZ- FAHR GROUP)EXPLORER 3105; 105 TSDF1000.4; 75kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)EXPLORER 390; 90 TSDF1000.4; 65kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)FRUTTETO III100; 100S/V; 100ClassicSDF1000.4; 71kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)FRUTTETO III110; 110S/VSDF1000.4; 78kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)FRUTTETO III80.4 ClassicSDF1000.4; 59kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)FRUTTETO III90; 90S/V; 90 ClassicSDF1000.4; 71kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)GOLDEN751000.4AW-
SAME (DEUTZ- FAHR GROUP)GOLDEN851000.4A-
SAME (DEUTZ- FAHR GROUP)KRYPTON 278 F/M/N/C--
SAME (DEUTZ- FAHR GROUP)KRYPTON 288 F/M--
SAME (DEUTZ- FAHR GROUP)KRYPTON 3100 FSDF1000.4; 70kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)KRYPTON 390 FSDF1000.4; 63kW; Tier 34.02013.01-
SAME (DEUTZ- FAHR GROUP)KRYPTON100--
SAME (DEUTZ- FAHR GROUP)KRYPTON80--
SAME (DEUTZ- FAHR GROUP)KRYPTON904cyl.4.0-
SAME (DEUTZ- FAHR GROUP)LASER 31401000.6WTI; 140HP6.02010.01-
SAME (DEUTZ- FAHR GROUP)LASER 31601000.6WTI; 163HP6.02010.01-
SAME (DEUTZ- FAHR GROUP)RUBIN120--
SAME (DEUTZ- FAHR GROUP)RUBIN135--
SAME (DEUTZ- FAHR GROUP)RUBIN150--
SAME (DEUTZ- FAHR GROUP)RUBIN160--
SAME (DEUTZ- FAHR GROUP)RUBIN180--
SAME (DEUTZ- FAHR GROUP)RUBIN200--
SAME (DEUTZ- FAHR GROUP)RUBIN200--
SAME (DEUTZ- FAHR GROUP)SILVER100.4 DT1000.4ATI-
SAME (DEUTZ- FAHR GROUP)SILVER100.6 DT1000.4ATI-
SAME (DEUTZ- FAHR GROUP)SILVER1051000.6W; 105HP6.02004.01-2009.12
SAME (DEUTZ- FAHR GROUP)SILVER1101000.4WTI 109HP4.02004.01-2009.12
SAME (DEUTZ- FAHR GROUP)SILVER180--
SAME (DEUTZ- FAHR GROUP)SILVER80 DT/2RM1000.4A-
SAME (DEUTZ- FAHR GROUP)SILVER851000.4WT; 85HP4.02004.01-2009.12
SAME (DEUTZ- FAHR GROUP)SILVER85/951000.4 W/WT4.02004.01-2009.12
SAME (DEUTZ- FAHR GROUP)SILVER90 DT/2RM1000.4AT-
SAME (DEUTZ- FAHR GROUP)SILVER951000.4WT; 105HP4.02004.01-2009.12

További adatok

További adatok
Tömeg (kg)10.359000
ÁllapotÚj
Feszültség12 V
Teljesítmény3.4 kW
Fogszám9
ForgásirányÓramutató járásával megegyező
MegjegyzésekWith reduction gear

Alkatrészek
